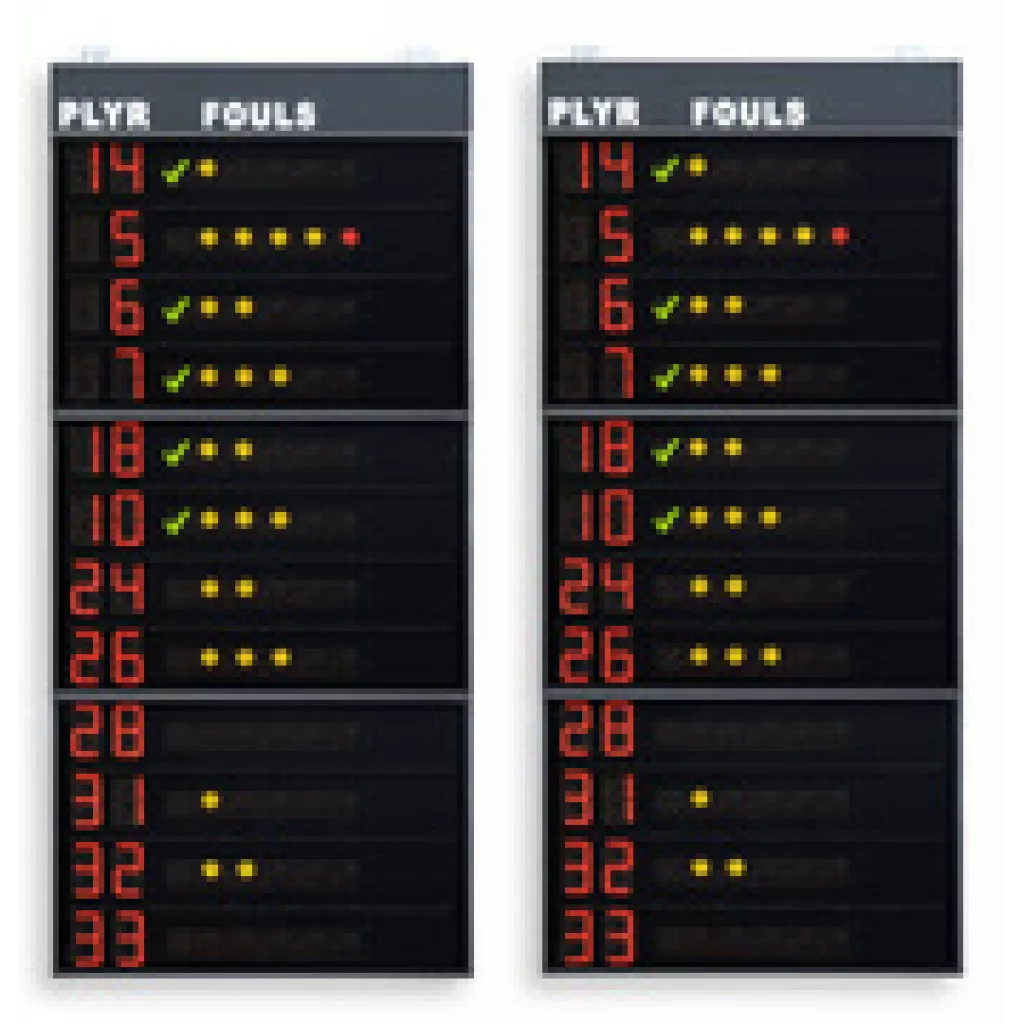

Functions displayed for each player (12 players per team):

Player number: [0-99], digits 15cm high.
Fouls/Penalties: [4 indicator lights + 1 red], diameter 3.2cm.

Technical characteristics for both panels:

• Dimensions and weight: 120x260x11.5cm, 68kg.
• Distance and readability angle: 70m (230ft), 150 degrees.
• No front protection cover required. Complies with DIN 18032-3 and UNI 9554:1989 standards on "resistance to damage from balls". You save on the cost of a protective cover, visibility is completely preserved, and access to the scoreboard is easy. YouTube video
• It fulfils the FIBA level 2 requirements, if used together with the scoreboards FS-120N or FS-130N (info). It can be used together with other models for creating large scoreboards displaying various information (info).
• Shipping is cheap and fast. The scoreboard is especially designed to be taken apart into smaller modules that are easy to assemble. This allows it to be shipped via all major couriers at a low cost and with faster delivery times to all countries.
• Easy to install. Technical instructions in 5 languages. Provided with bolts and brackets for wall mounting.
• Supplied with serial cable 4m in length to connect to the main electronic scoreboard (FS-100/100N, FS-110/110N, FS-120/120N, FS-130/130N) or to a Radio Receiver (art.265-20). See ACCESSORIES.
• Robust container made from powder-coated aluminum. Front panel made from anti-glare polycarbonate.
• Views are easily accessible from the front, built with high-quality, wide-angle SMD LEDs with an average life of 100,000 hours!
• Control Console (not included). Controlled via the Control Console (see ACCESSORIES) of the electronic scoreboard above it.
• Guarantee: 2 years (info).
• Power supply: 100-240Vac, 50-60Hz, 145VA. Select the type of plug for the power supply cord when ordering.

ACCESSORIES (not included):

• Scoreboard Control Console: Art.308-01 Console-700
  User-friendly multisport touchscreen console for FC, FS, FW, TM, FOS series electronic scoreboards. Wireless or wired communication. 14-hour average life internal battery.
• FS2 Radio Receiver for FS scoreboards (art.265-20). Receives via radio the data transmitted by the control console and distributes the signal to one or more scoreboards via cable. Reliable wireless communication: by 2.4GHz FHSS (Frequency Hopping Spread Spectrum) radio transmission to avoid interferences. The use of a wireless system reduces costs by eliminating the need of a cable connection between console and scoreboards. >> Radio Receiver installation manual
