Består av:

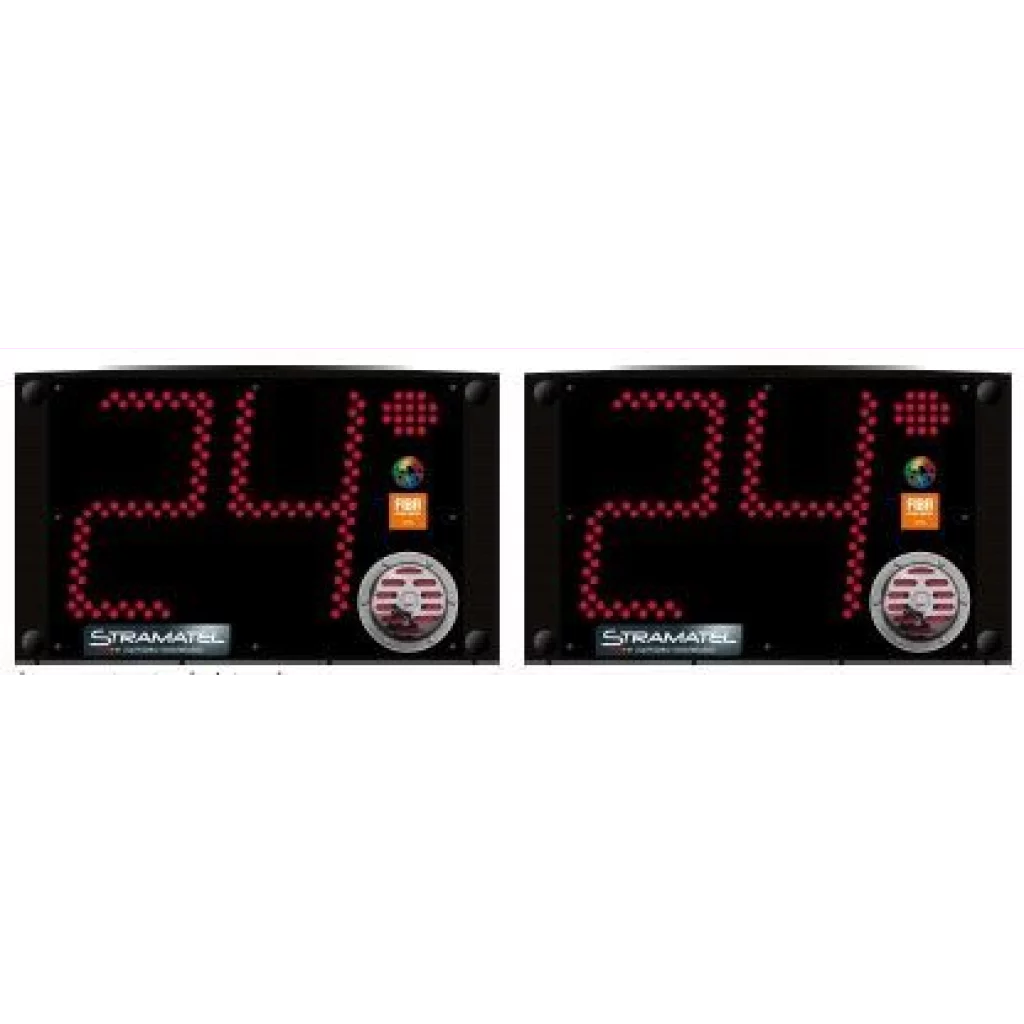

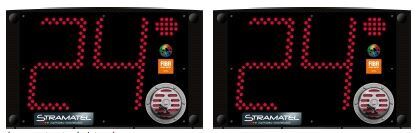

2 electronic display boards
1 control console,
1 carrying case for control console
2 main cables
2 polycarbonate stands (Floor installation)
Operating and installation instructions
Description
Use : Indoor
Transmission : Radio (868 MHz) or cable – work ONLY with STRAMATEL main scoreboard
Readability : 100m, angle >160°
Dimensions : 500 x 300 x 65 mm
Weight : 2,5 kg per unit
Power supply : 230V / 50-60Hz
Power consumed: 33 VA
Protection : Unbreakable matte polycarbonate front face (DIN 18032-3)
Integrated Horn : 96dB at 1m
Mains cable (supplied) : 2 x 25 m – Typ: 230V, 3G, 0.75 mm²
Display functions
24/14 second attack timer: 2 red LED digits (23 cm) per display
Timer Stop: 1 red LED dots (5 cm) per display
Control consoles
1 console: (145 x 150 x 40 mm) with LCD screen
1 carrying case: for control console (270 x 200 x 50 mm)
WORK ONLY WITH A STRAMATEL ELECTRONIC SCOREBOARD
Options
Led Strip: Electric light to be installed behind the backboard, connected with the 24 second shot clocks, synchronised with the main timer to light up at the end of each period.
Installation support frame (for installation behind the Basket Ball Backboards)
