Består av:
1 scoreboard (made of 1 module)
1 control console
1 carrying case for control console
1 mains cable
Operating and installation instructions
Technical description
Use: Outdoor
Transmission : Radio (868 MHz) or cable
Readability : 120m, angle >160°
Dimensions : 1800 x 1000 x 90 mm
Weight : 34 kg
Power supply : 230V / 50-60Hz Power consumed: 66 VA
Protection : unbreakable mat polycarbonate front face (DIN 18032-3)
Mains cable (supplied) : 5m (socket not supplied) – Type: 230V, 3G, 0.75 mm²
Cable controlled : for cable controlled models or radio controlled models with cable set
Junction box + 50m transmission cable (scoreboard / junction box) –
Type: phone cable 2 pairs 6/10th + 10m transmission cable DIN/DIN
(junction box / console)
Installation : on I-Beams(adjustable fixing) or wall-mounted (with clamps supplied)
Brightness: adjustable from the control console

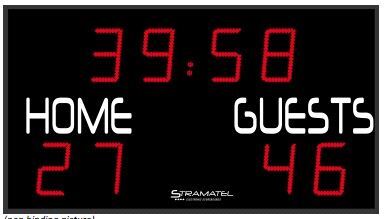

Display functions
Score : 2 x 2 red LED digits (25 cm)
Timer / Rest period : 4 red LED digits (25 cm) + 2 blinking points
Day time : when the scoreboard is not in use
(switched off at night)
Control consoles
1 console : (340 x 175 x 60 mm) with LCD-screen with 2 lanes of 20 characters (9mm high)
1 charger (radio) : Hold the console in charge when not in use (Autonomy max. 16h)
USB Port : For program update or connect PC Keyboard
Programme: 3 sport disciplines: Soccer, Rugby, Field Hockey
Multilingual programme
Options
TV Interface (RS 485) : Data transmission for TV broadcasting
Sound Interface: Connection with sound system - Horn sound amplifier
DCF or GPS Antenna: For accurate time synchronisation
Cable set: Cable mode for radio controlled scoreboard
Advertising panels: Black panels (advertising stickers on demand)
