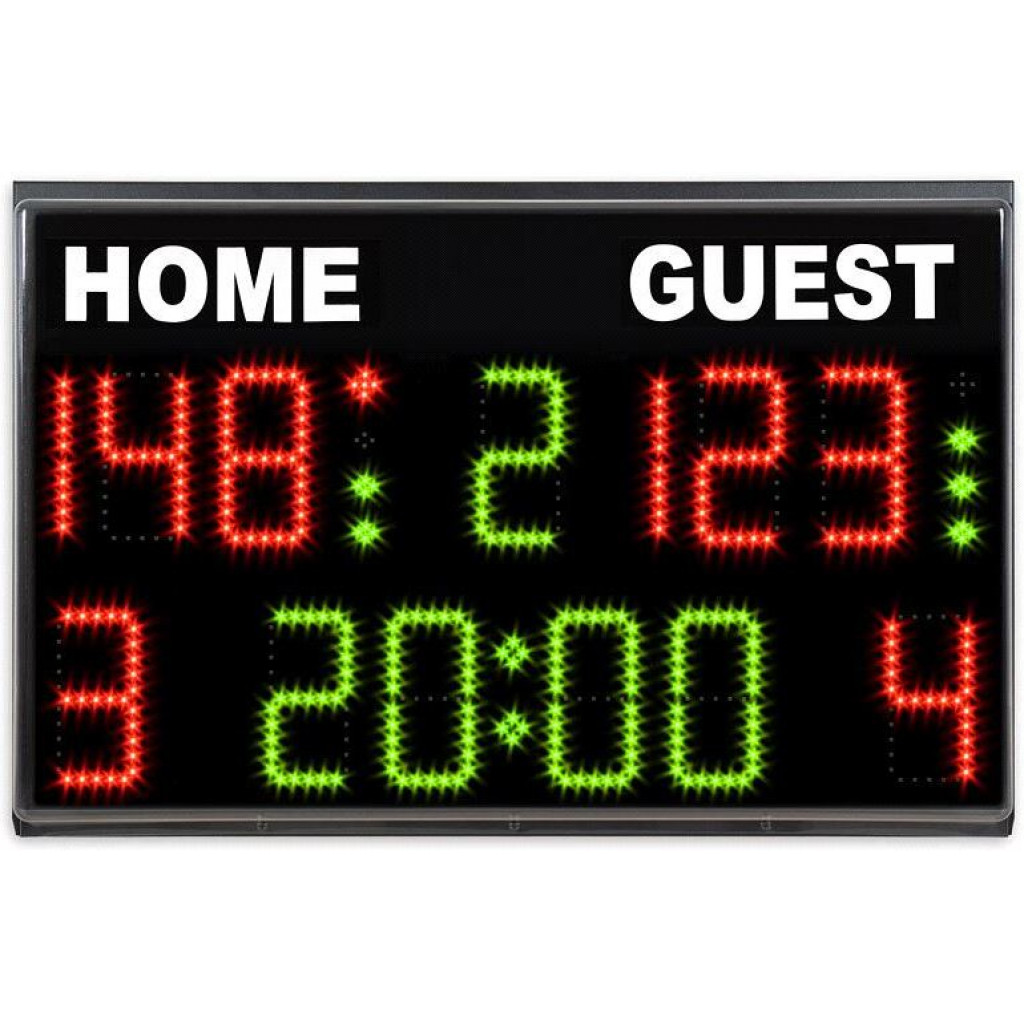

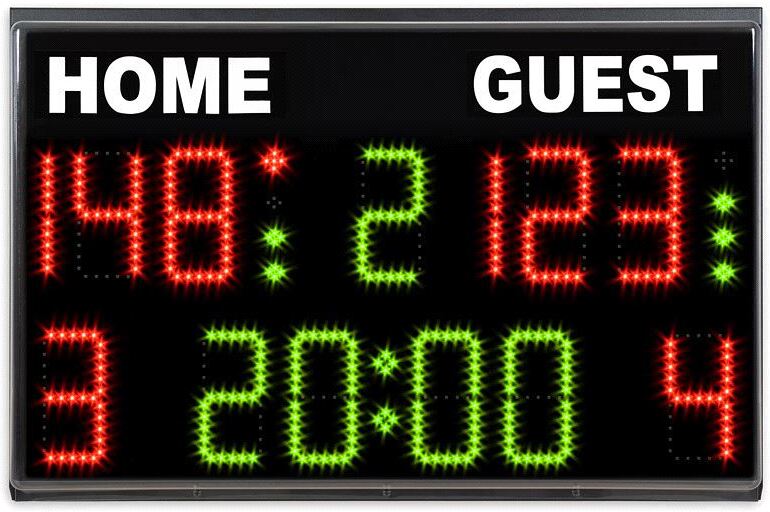

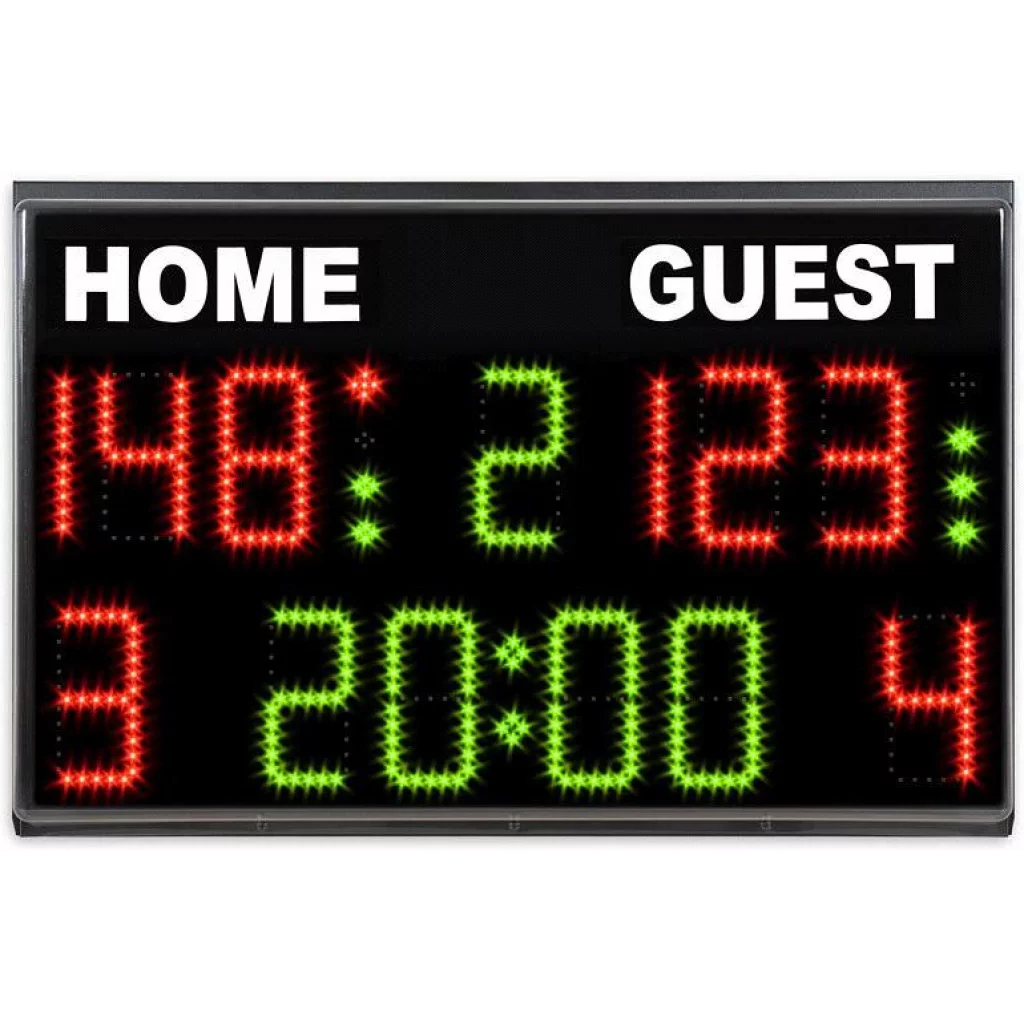

Multisport resultattavle for kablet eller trådløst touchscreen-display.
Multisport scoreboard suitable for multidiscipline use (basketball, volleyball, futsal, etc.) in small sports halls.
Digit height: 15cm. Readability distance: 50m.
Key features
• Multisport scoreboard.
• Digit height: 15cm. Readability distance: 50m.
• Readability angle: 150°.
• Resistant to damage from balls as per DIN 18032-3 and UNI 9554 standards.
• Wireless or wired communication.
• Display of: team scores, game time, timeout, team fouls, period, ball possession.
• Display of the time of the day.
• Horn.
• Suitable for indoor application.
• Wall mounting. Supplied with brackets.
• Dimensions: 91x60x9.5cm.
• Weight: 10.1kg.
• To be used together with specific control console.
Specifications
• Multisport scoreboard suitable for multidiscipline use (basketball, volleyball, futsal, etc.) in small sports halls.
• Digit height: 15cm. Readability distance: 50m.
• Readability angle: 150°.
• Displayed functions:
- Team scores: [0 - 199]
- Game time: [00:00 - 99:59]
- Timeout: [3 light indicators per team]
- Ball possession/Service/Bonus: [1 light indicator per team]
- Period: [0 - 9]
• Compliant with DIN 18032-3 and UNI 9554 standards on "Resistance to damage from balls".
No front protection cover is required. You save on the cost of a protective cover, full visibility is guaranteed, and access to the scoreboard is easy.
• To be used together with Console-300 and Console-700 (the latter for wireless communication).
• Reliable wireless communication: by 2.4GHz FHSS (Frequency Hopping Spread Spectrum) radio transmission to avoid interferences. The use of a wireless system reduces costs by eliminating the need of a cable connection between console and scoreboards.
• Suitable for indoor application.
• Installation instructions in 5 languages. Supplied with bolts and brackets for wall mounting.
• Clock function to display time of the day, also with unplugged console.
• Time expired horn: 2.9KHz, 95db/2m, suitable for not particularly noisy venues.
• Sturdy powder-coated aluminum case. Polycarbonate front panel.
• Display cards easily accessible from the front, with SMT LED technology and average life span of 100,000 hours.
• Power supply: 100-240V 85VA. Supplied with power supply cable and plug (plug type can be chosen when ordering).
• Guarantee: 2 years
• Dimensions: 91x60x9.5cm.
• Weight: 10.1kg.
Product options, selectable after adding the article to the basket:
• Type of plug
• Adhesive labels: HOME-GUEST, LOCALES-VISITANTES, etc.
• Console connection cable, if wireless communication is not used.
ACCESSORIES :
Control console: not supplied with the scoreboard.
It is possible to choose among the following consoles:
Art.308-01 Console-700
Console with 7" color touchscreen display. Wireless or wired communication.
eller:
Art. 307-01 Console-300
Console with 2x20 LCD display and membrane keyboard. Wired connection.
Note: a console can control various scoreboards, for example those installed at the ends of the playing field.
Optional articles, (ikke inkludert i prisen) to complete the product:
Art. 308-10 Case-700, carrying case for Console-700
Robust carrying case for easy transport.
Art.232-03 Time-Console-03
Additional console, useful for the timekeeper or the 24/14/30 second shot clock operator.
