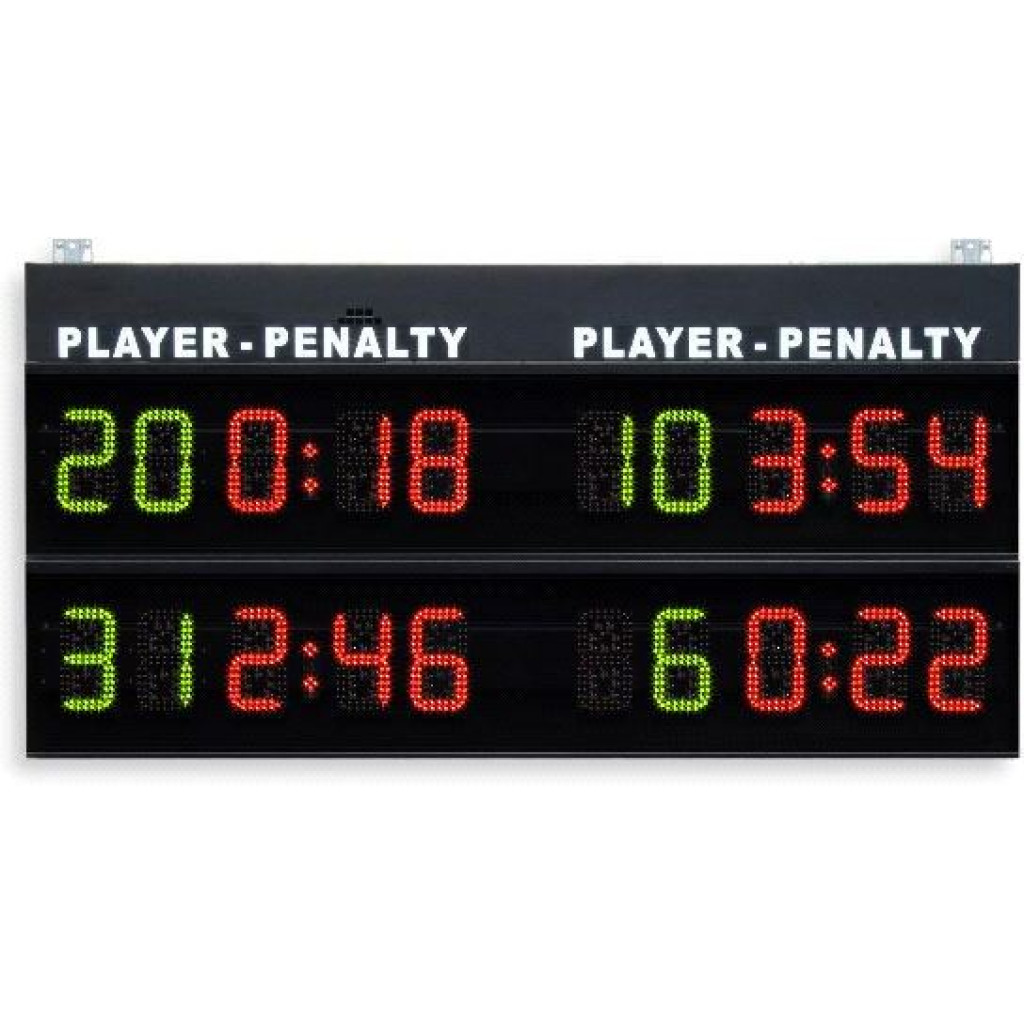

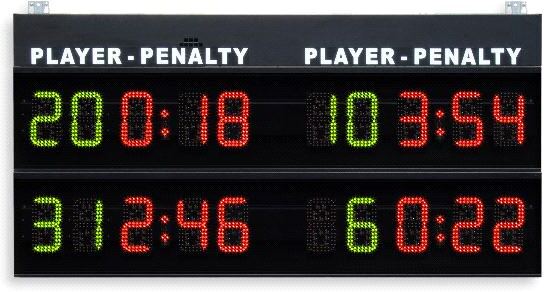

Functions displayed:

Player number: [0-99], digits 20cm high.
Player penalty time: [0:00-9:59], digits 20cm high.

Technical characteristics:

• Dimensions and weight: 200x100x9cm, 36.5kg.
• Distance and readability angle: 90m (300ft), 150 degrees.
• No front protection cover required. Complies with DIN 18032-3 and UNI 9554 standards on "resistance to damage from balls." You save on the cost of a protective cover, visibility is completely preserved, and access to the scoreboard is easy.
• It can be used together with other models for creating large scoreboards displaying various information.
• Shipping is cheap and fast. The scoreboard is especially designed to be taken apart into smaller modules that are easy to assemble. This allows it to be shipped via all major couriers at a low cost and with faster delivery times to all countries.
• Easy to install. Technical instructions in 5 languages. Provided with bolts and brackets for wall mounting. Usually mounted under the main scoreboard displaying the scores (Models FS-100 to 130).
• Supplied with 4m serial cable to connect to the electronic scoreboard above it or a Radio Receiver (art.265-10). See ACCESSORIES.

• Robust container made from powder-coated aluminum. Front panel made from anti-glare polycarbonate.
• Views are easily accessible from the front, built with high-quality, wide-angle SMD LEDs with an average life of 100,000 hours!
• Control Console (not included). Controlled via the Control Console (see ACCESSORIES) of the electronic scoreboard above it. The Control Console shows up to 5 penalty times per team; the duration is preset depending on the sport selected.
• Optional anti-moisture coating of the electronic boards, recommended for swimming-pool and ice-rink installations. Please specify this option when ordering.
• Guarantee: 2 years.
• Power supply: 100-240Vac, 50-60Hz, 170VA. Select the type of plug for the power supply cord when ordering.

ACCESSORIES (not included):

• Scoreboard Control Console .
  CONSOLE-320 (art.230A) comes equipped with a large graphic display and can be used to control all FS-series scoreboards. To avoid having to connect the console to the scoreboards with a serial cable, a radio-controlled version (art.230B) is available.
• Radio Receiver for FS scoreboards (art.265-10)
  Receives the data transmitted by the control console, when it is equipped with a radio transmitter, and distributes the signal to one or more scoreboards. Radio communication is at 2.4GHz, on a channel chosen automatically to prevent interference with other equipment.
  >> Radio Receiver installation manual
